Saturday, June 25, 2016

ESP8266 NodeMCU firmware update

As we know from previous posts, the ESP8266 WiFi module can work as a standalone device. It's MCU, GPIO ports and user memory are all it's needed to make simple IoT projects like wireless Internet enabled data loggers.

For the ESP8266 to work as a standalone device we need to use a module with bootable OS. For this project we will use the NodeMCU firmware. NodeMCU is a firmware based in the eLua programming language for the ESP8266 from Espressif. The latest firmware is based on the Espressif NON-OS SDK 1.5.1.

You can buy a ESP8266 module with NodeMCU already loaded or you can flash a "standard" ESP8266 with the NodeMCU firmware yourself. If you're like me you'll want to flash the firmware yourself. After all that's how we learn stuff, by doing it ourselves!

NodeMCU firmware can be obtained from GitHub. It currently is made up of 41 modules. According to the team, due to the ever-growing number of modules available within NodeMCU, pre-built binaries are no longer made available. Now you select the modules you need, provide an e-mail address and the firmware will be custom built and sent to your e-mail. But older pre-built NodeMCU firmware versions are available. You can also built your own NodeMCU firmware. Fore more info go to the NodeMCU firmware GitHub project page.

To replace the ESP8266 firmware with NodeMCU we can use one of several flasher tools available. I will use the official tool from Espressif: ESP Flash Download Tool

Put the ESP8266 module in download mode and download the NodeMCU .bin firmware file to the 0x00000 address. You will need an USB to Serial adapter. If you don't know how to do this, read my previous post.


NODEMCU firmware flashing with ESP Flash download tool

After the the firmware is successfully uploaded to the module we can check if the device is booting with NodeMCU. Disable download mode, start RealTerm and restart the module. In RealTerm you shoud get a Lua prompt:

RealTerm - NodeMCU firmware update success

Ignore the cannot open init.lua message, it's normal. It's shown because we did not upload a init.lua file yet. We'll do that when we upload Lua project files.

Downloads:
Download ESP FLASH DOWNLOAD TOOL
Download ESP8266 NodeMCU firmware
Download RealTerm

Buy the Parts:
Buy the ESP8266 Wi-Fi from Banggood
Buy the ESP8266 Wi-Fi from Dealextreme
Buy the USB to Serial Adapter from Banggood
Buy the USB to Serial Adapter from Dealextreme

Previous ESP8266 posts:
ESP8266 firmware update
ESP8266 ESP-01 testing - Part 2
ESP8266 ESP-01 testing - Part 1
ESP8266 WiFi modules

Thursday, June 16, 2016

ESP8266 firmware update

If you have one or more of these little ESP8266 WiFi modules, sooner or later you will want to update their firmware. Espressif, the module's maker has been regularly releasing firmware updates introducing new functionalities and bug fixes. So, let's give it a try!

In previous posts I demonstrated how to connect the ESP8266 to a computer and test it. You may want to check it out if you don't yet know how to do that. Check the shortcuts at the end of this post.


Which firmware?


You can choose between firmware's with OS or without OS (NONOS). A firmware with OS will make your module a bootable device able to work by its own. You can even develop and upload a customized firmware. There are firmware's from different sources spread across the Internet, some quite suspicious. I recommend to go with a "trusted" source like AI-Thinker or Espressif. For this guide I will be using firmware from Espressif, the maker of the modules.

I am using a 4Mbit module and, at the time of writing, the latest firmware from Espressif that will "fit" this memory size is esp8266_nonos_sdk_v1.4.0_15_09_18_0. If your module has 8Mbit flash or more, you can update to a newer version. You can download ESP8266 firmware from Espressif here.


What firmware flasher tool?


To upload the firmware to the ESP8266 we can use several programs. I will be using the free ESP FLASH TOOL from Espressif, the maker of the modules. The latest version is 2.4, you can get it here.

ESP FLASH DOWNLOAD TOOL V2.4


Firmware download mode


Before the firmware can be uploaded, the ESP8266 module must be in firmware download mode. This is done by connecting GPIOØ pin to ground (GND).


Get ESP8266 module info


Once the module is in download mode, powered up and connected to a computer:

  • Check the correct COM port is selected in ESP FLASH TOOL. The default Baud rate should work. In case it doesn't try different values.
  • Click the START button.

The program should display SYNC in a green square left of the start button. It will retrieve the MAC address, memory size and crystal frequency, among other info. .


Select and upload firmware files


Now that we know the ESP flash download tool is communicating with our module:

ESP FLASH DOWNLOAD TOOL V2.4

  • Select the correct flash memory size and crystal frequency. Note: sometimes the program retrieves a wrong crystal frequency (24Mhz or 21Mhz for example).

Now, depending on the firmware we want to use, we need to select one or more files in the ESP Flash Download Tool Download Path Config panel. Each of these files must be loaded to the correct memory address. This information should be in a Readme file in the firmware archive file.

  • For each file needed, click the ... button of the correct memory address and navigate to the .bin file.
  • Check the selection box of each file/memory address.
  • Press START.

After a few seconds, if the upload was successful, the ESP Flash Download Tool will display FINISH.

Now that we successfully updated the firmware we must not forget to disable the firmware download mode by disconnecting the GPIOØ pin from ground!

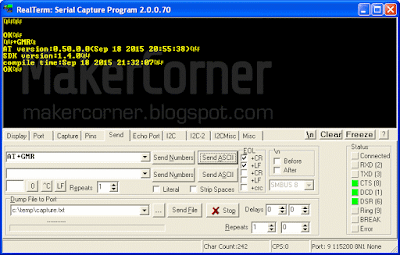

In RealTerm, sending the AT+GMR command will show the new firmware info:

Verifying firmware update success in RealTerm

Be aware that the firmware upgrade might change the ESP8266 baud rate. In this case you must change the baud rate in RealTerm also!

I have uploaded a ESP8266 firmware upgrade video tutorial to YouTube. Please check it out and give it a thumbs up if you like it!
